Tool Inspection System with 1 Year Warranty Customized Support and Wooden Case Packaging Vision Measurement Machine

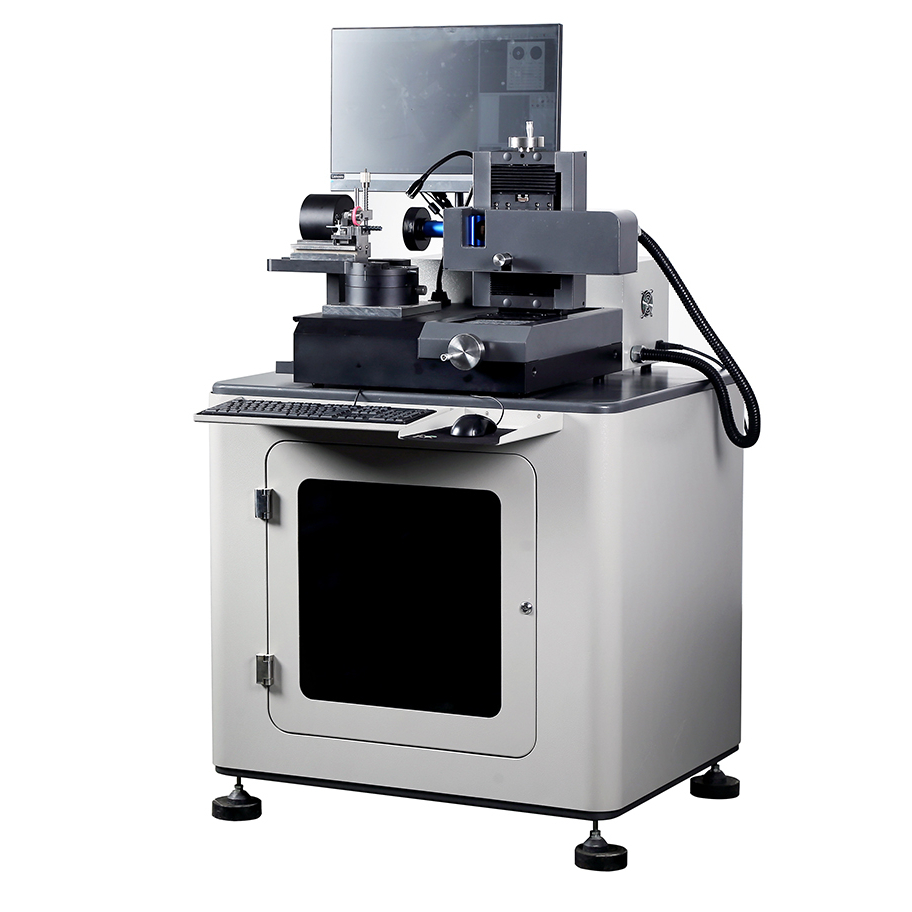

The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks featuring a flexible illuminating system. Its compact design and stability make it suitable for metrology rooms, receiving inspection, or direct production line use.

Configured with SMARTOOL universal measuring software, the RANGER600 provides comprehensive control of special tool geometries, from simple outer contour checks to complete angle measurements. The system enables a streamlined PUT-MEASURE-ANALYSE process.

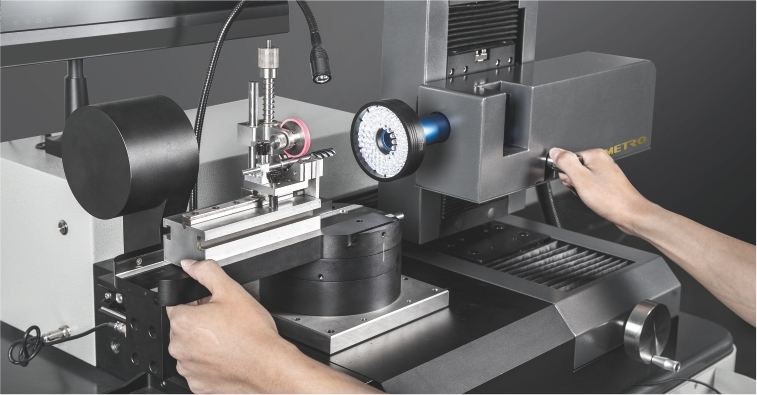

The RANGER600's rotary table provides two mechanical fixed angles (0° and 90°) for fast, precise tool positioning. The 0° position enables measurement of tool ends, center shafts, and front angles, while the 90° position facilitates helix angles, axial front angles, and rear angle measurements. Additional angles are available via the embedded encoder with real-time software display.

High-resolution image display with graphical interface and on-screen function keys for streamlined operation.

Real-time edge detection curve visualization for intuitive analysis during measurement processes.

Rotatable reticle with angle display enables quick edge comparison measurements.

Import CAD drawings as reference to compare against actual tool geometries for quality evaluation.

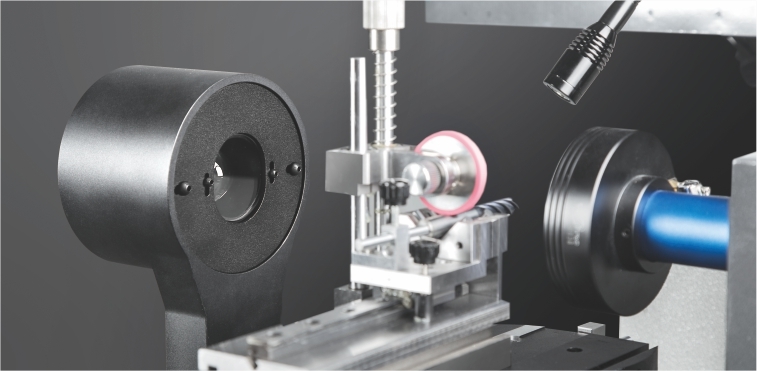

Dimmable additional light on flexible arm provides localized image enhancement for precise measurements.

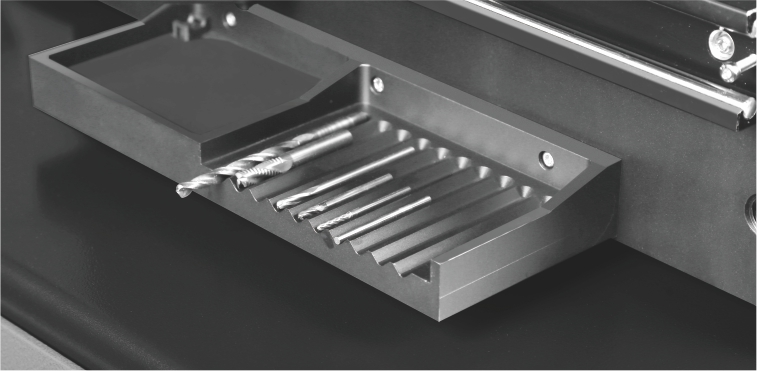

Multiple-section tool holder keeps instruments organized and ready for measurement.

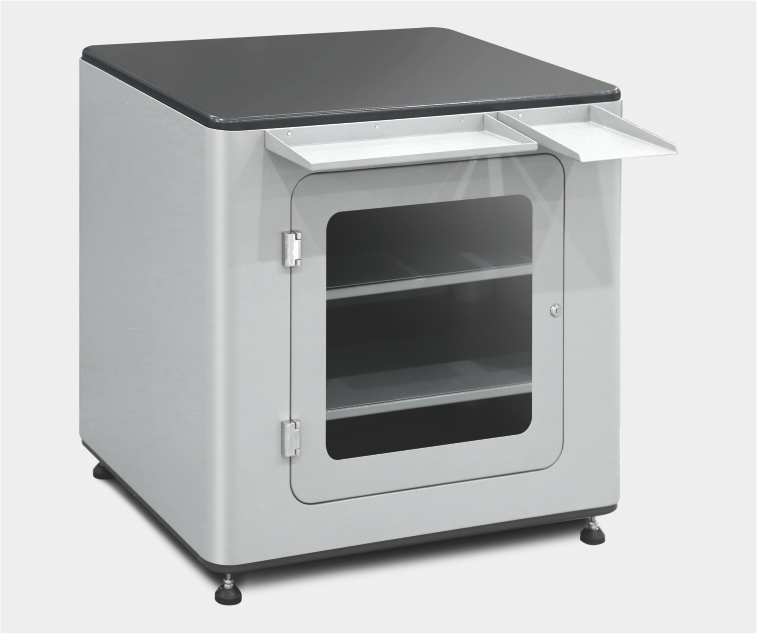

Solid workstation with practical storage space for materials and accessories.

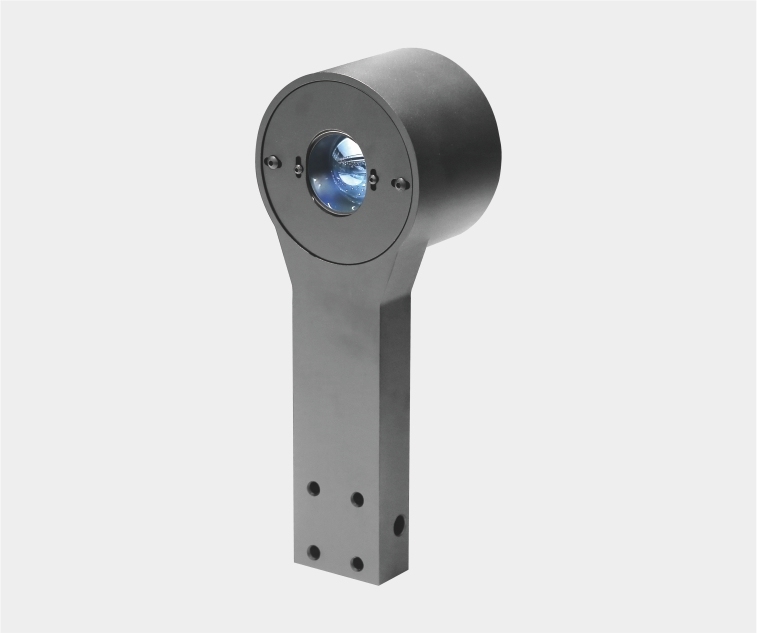

Parallel light path contour LED module provides optimal edge visualization when measuring tool contours.

With over 10 years of experience in metrology, UNIMETRO manufactures high-performance measurement products at competitive prices. We welcome global partners and provide comprehensive marketing and technical support.

Beyond vision measurement machines and CMMs, our production line includes core optical metrology components: VMM controllers, lens systems, cameras, linear scales, and specialized fixtures.

Our specialist team provides flexible measuring solutions with minimal after-sales service requirements, thanks to our stable, modular designs that reduce partner training and maintenance costs.
