| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
|---|---|
| ब्रांड नाम: | UNIMETRO |
| प्रमाणन: | CE,ISO |
| मॉडल संख्या: | एचपी श्रृंखला |
| न्यूनतम आदेश मात्रा: | 1 सेट |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | लकड़ी का केस + वैक्यूम पैकेज |
| प्रसव के समय: | 15 ~ 20 दिन |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 5 सेट |
| नमूना: | वह श्रृंखला | प्रोडक्ट का नाम: | पूरी तरह से स्वचालित छवि मापने वाला उपकरण (निश्चित गैन्ट्री प्रकार) - HP442 |
|---|---|---|---|
| repeatability: | 1.5 उम | शुद्धता: | 1.6+एल/200um |
| रैखिक मान संकल्प: | 0.5um (वैकल्पिक के लिए 0.1um) | माप मोड: | पूरी तरह से स्वचालित |
| सहायता: | OEM,ODM, अनुकूलित करें | अनुप्रयोग दृश्यावली: | प्रयोगशाला/औद्योगिक |
| गारंटी: | 12 महीने | वजन(किग्रा): | 560 |
| क्रोध को मापना: | 40/400/200 | ||
| प्रमुखता देना: | HP Series VMM 3D vision machine,Non-contact measurement 3C inspection,Precision inspection vision measurement machine |
||
HP: High-Precision (High Precision)

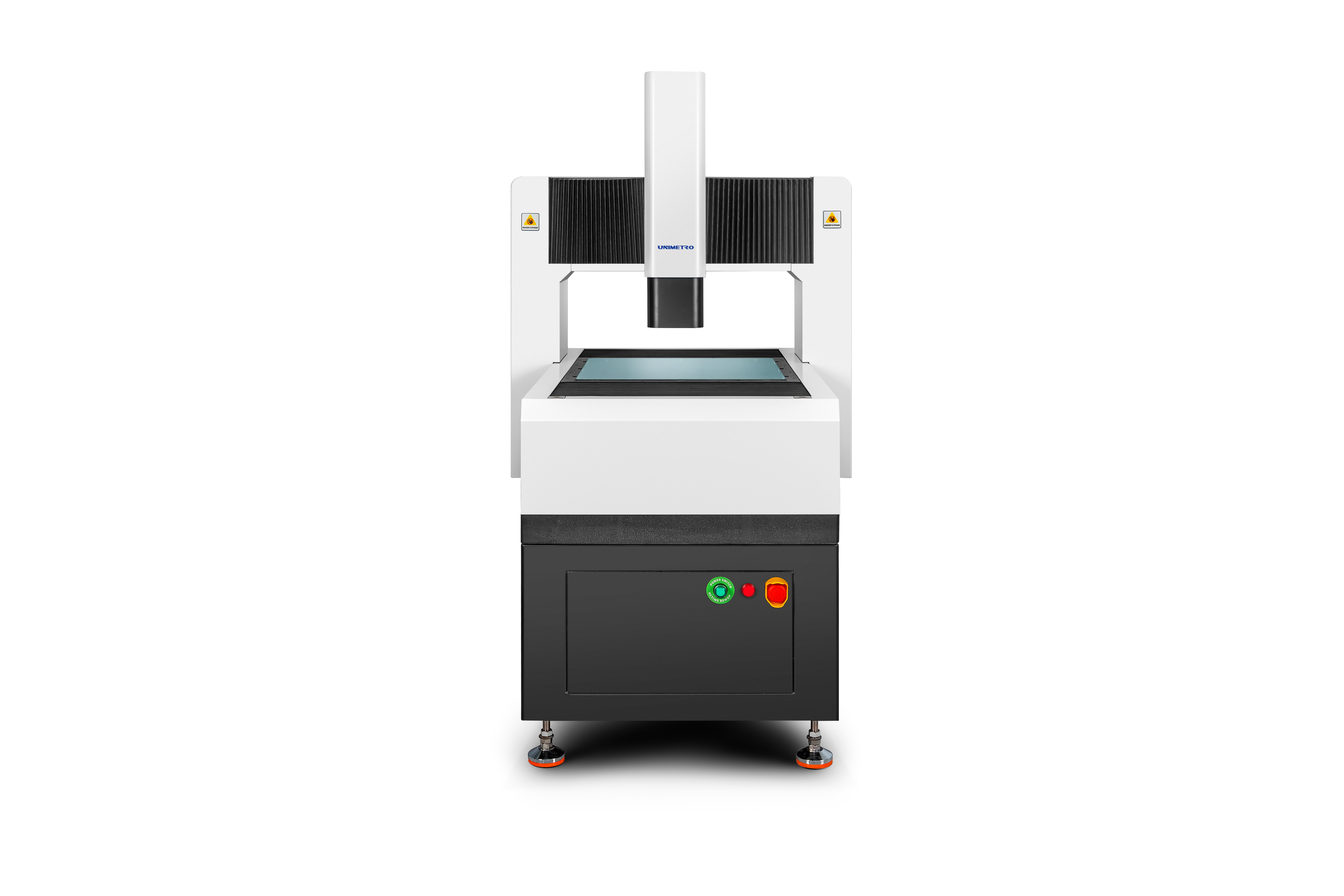

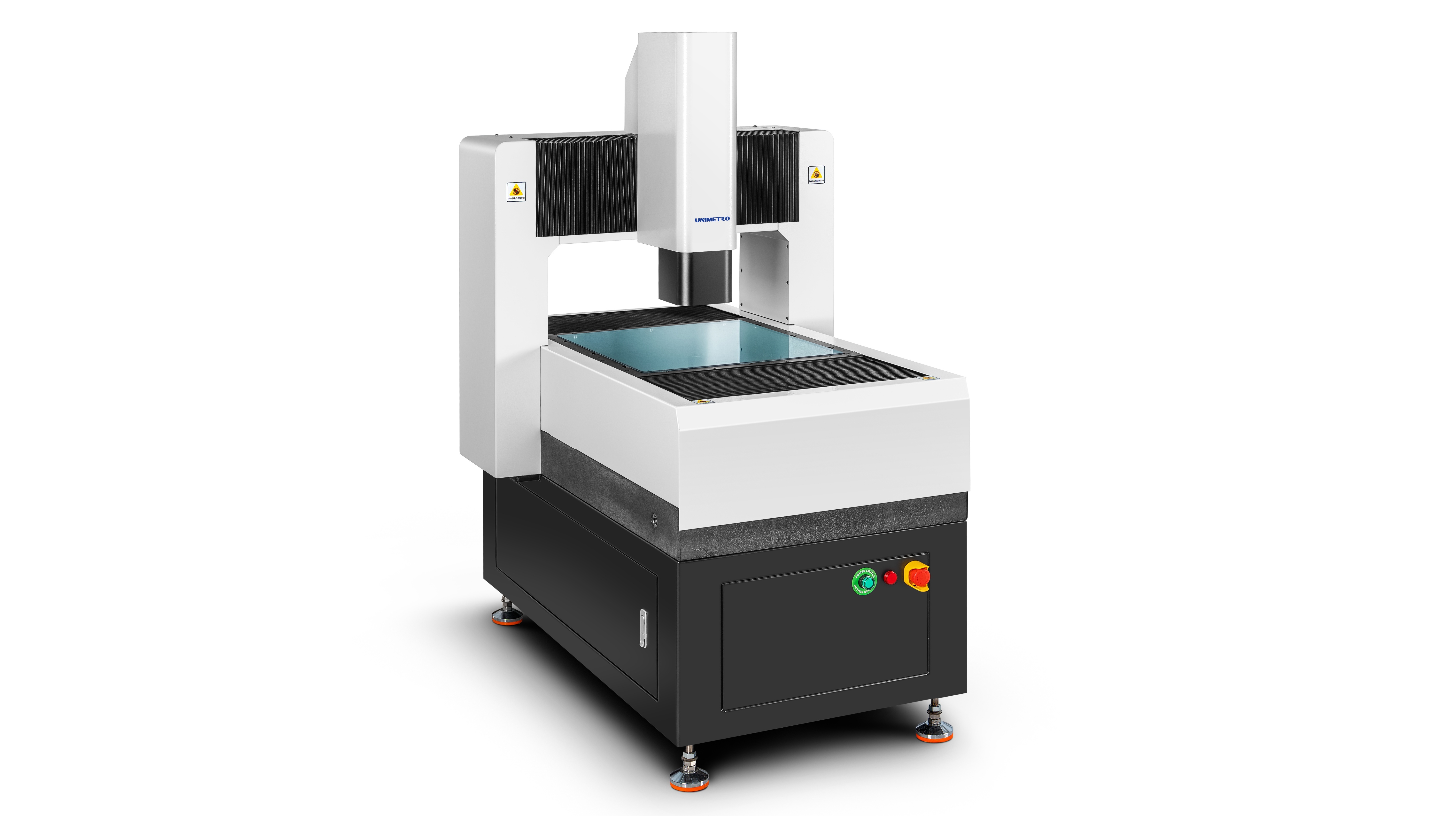

The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.
| Model | HP 442 | HP662 | HP872 |
|---|---|---|---|
| Dimensions (mm) (X × Y × Z) | 920×1200×1600 | 1120×1400×1600 | 1320×1600×1600 |
| Measuring range (mm) (X × Y × Z) | 400×400×200 | 600×600×200 | 800×700×200 |
| Accuracy (μm) | 1.6 +L/200 | 1.6 +L/200 | 1.6 +L/200 |
| Repeatability (μm) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | 560 | 860 | 1600 |
Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.)
Video Magnification: 18~195X (According to the different models of the selected camera; the actual magnification is subject to the measured data)
Work Distance: 85mm
Illumination: Programmable surface light, LED bottom parallel light (optional: coaxial light)

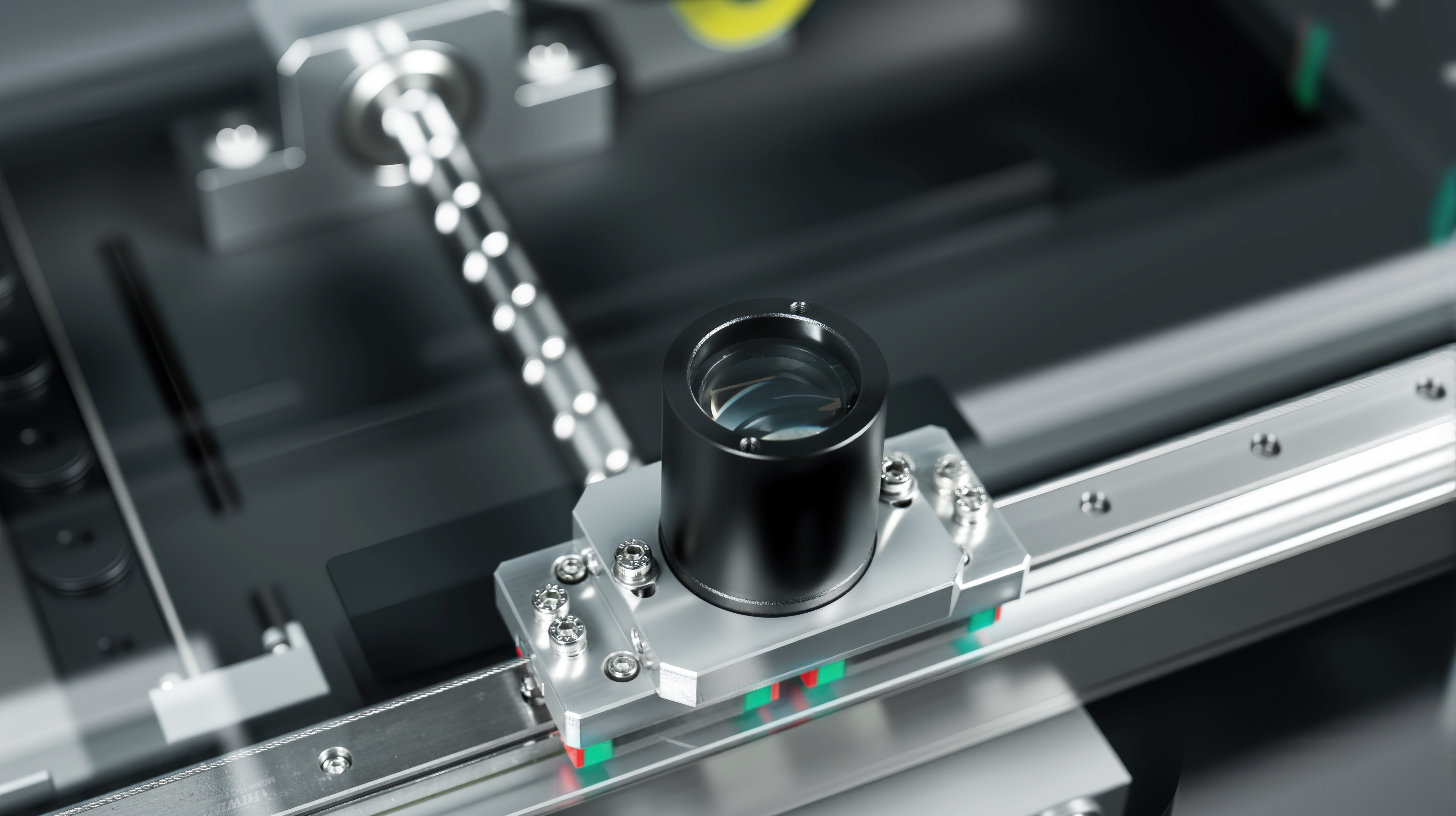

Drive system: CNC control, linear motor drive; Handle control, mouse/keyboard control
Linear scale resolution: 0.1μm
HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
