| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
|---|---|
| ब्रांड नाम: | UNIMETRO |
| प्रमाणन: | CE,ISO |
| मॉडल संख्या: | एचपी श्रृंखला |
| न्यूनतम आदेश मात्रा: | 1 सेट |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | लकड़ी का केस + वैक्यूम पैकेज |
| प्रसव के समय: | 15 ~ 20 दिन |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 5 सेट |

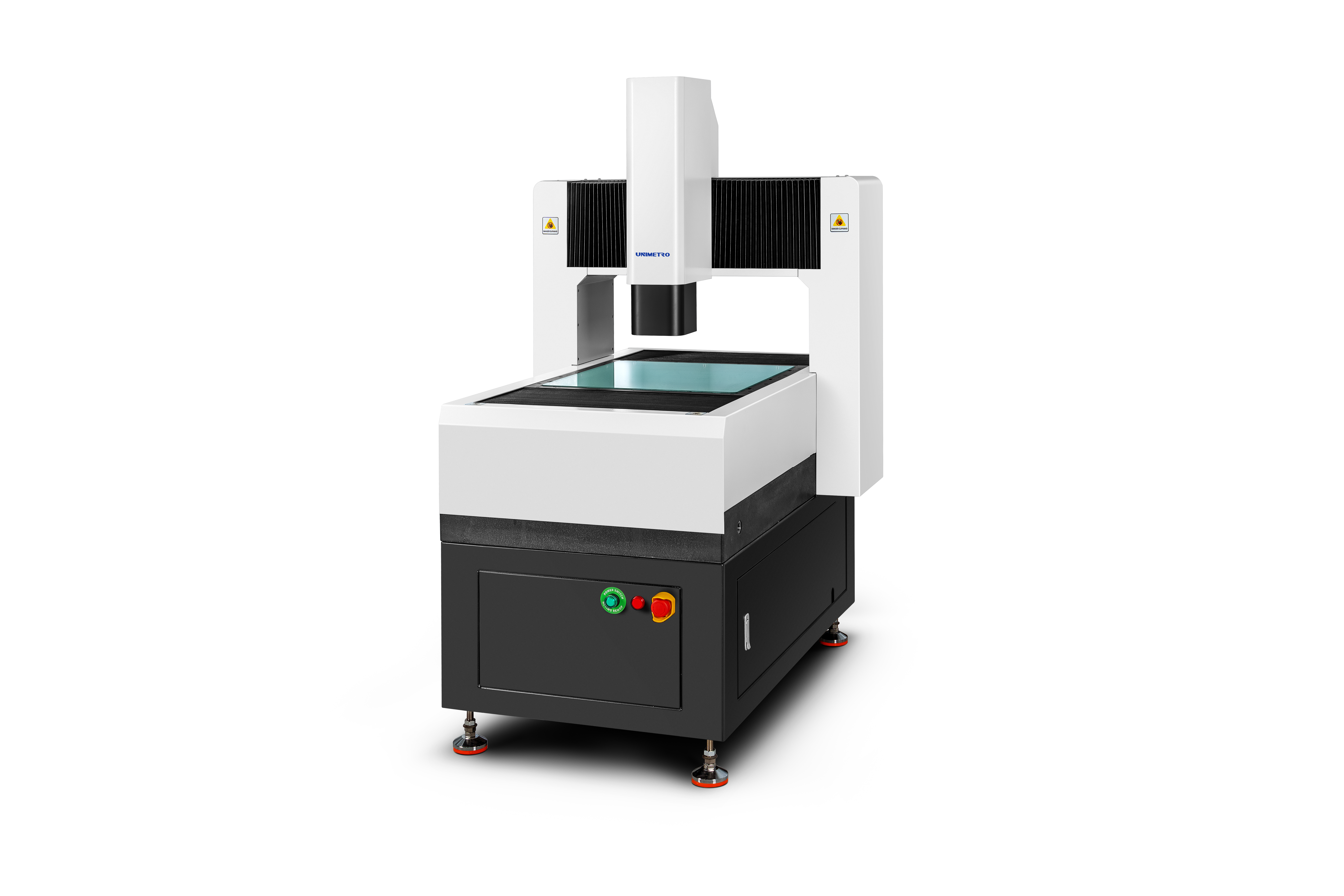

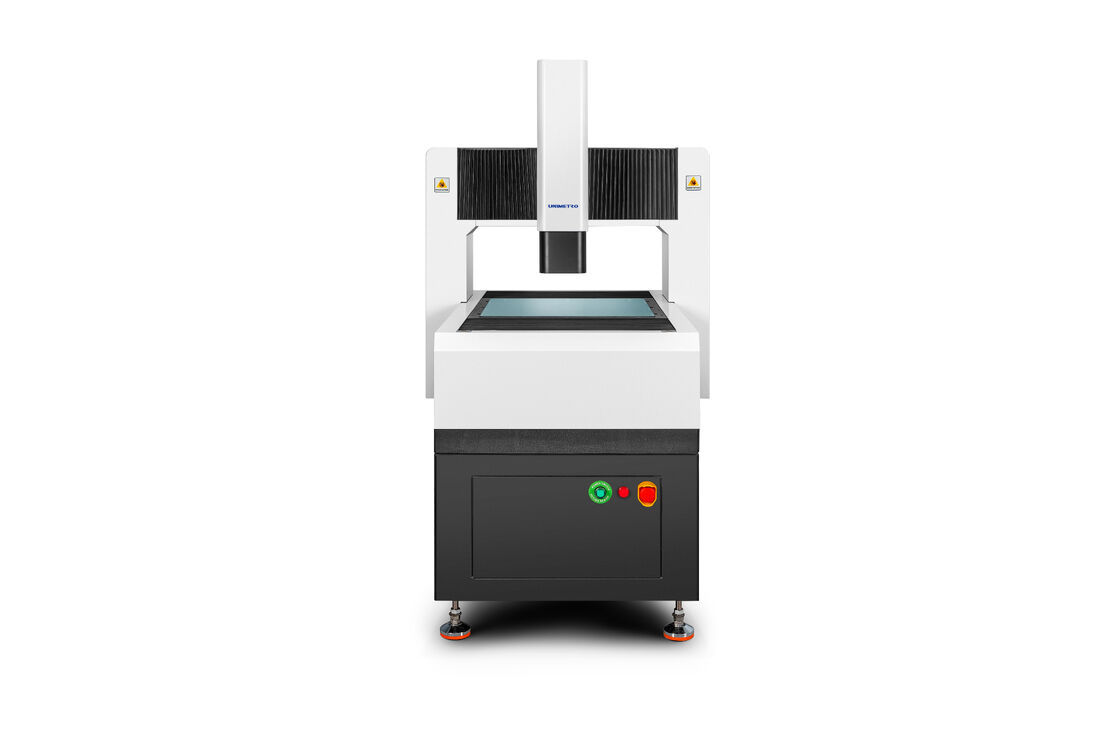

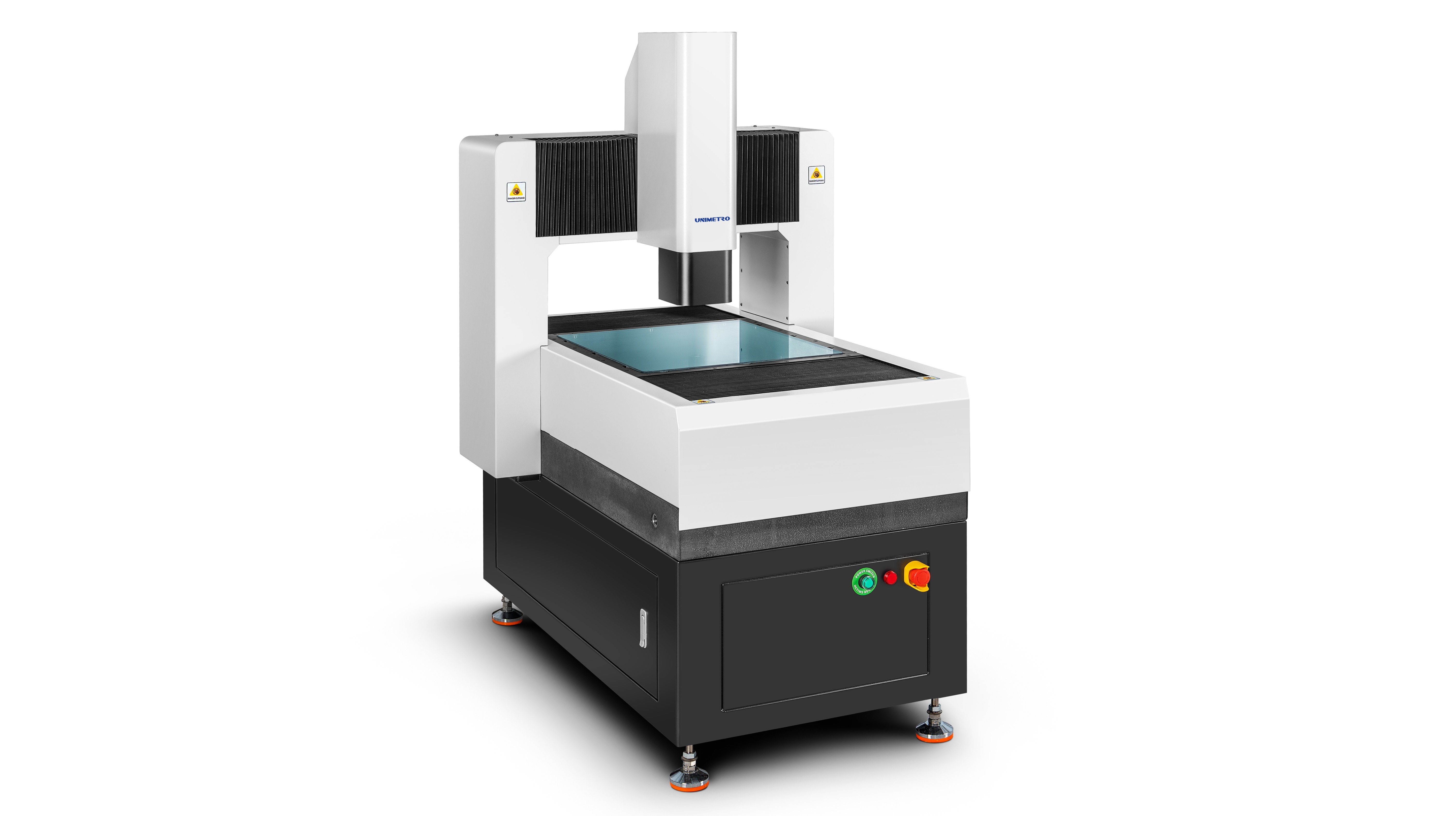

| नमूना: | वह श्रृंखला | प्रोडक्ट का नाम: | पूरी तरह से स्वचालित छवि मापने वाला उपकरण (निश्चित गैन्ट्री प्रकार) - HP442 |
|---|---|---|---|
| repeatability: | 1.5 उम | शुद्धता: | 1.6+एल/200um |
| रैखिक मान संकल्प: | 0.5um (वैकल्पिक के लिए 0.1um) | माप मोड: | पूरी तरह से स्वचालित |
| सहायता: | OEM,ODM, अनुकूलित करें | अनुप्रयोग दृश्यावली: | प्रयोगशाला/औद्योगिक |
| गारंटी: | 12 महीने | वजन(किग्रा): | 560 |
| क्रोध को मापना: | 400/400/200 | ||
| प्रमुखता देना: | HP Series laser measurement machine,industrial non-contact inspection VMM,auto parts vision measurement machine |
||
HP: High-Precision (High Precision)
The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.
| Model | HP 442 | HP662 | HP872 |
|---|---|---|---|
| Dimensions (mm) (X x Y x Z) | 920*1200*1600 | 1120*1400*1600 | 1320*1600*1600 |
| Measuring range (mm) (X x Y x Z) | 400*400*200 | 600*600*200 | 800*700*200 |
| Accuracy (um) | 1.6 +L/200 | 1.6 +L/200 | 1.6 +L/200 |
| Repeatability (um) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | 560 | 860 | 1600 |
| Resolution | 0.5μm (0.1um for option) | ||
| Camera | Industrial-grade color CCD camera | ||
| Lens | 1x-10x (Variable magnification) | ||
| Magnification | 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.) | ||
| Video Magnification | 18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data) | ||
| Work Distance | 85mm | ||
| Illumination | Programmable surface light, LED bottom parallel light (optional: coaxial light) | ||
| Drive system | CNC control, linear motor drive; Handle control, mouse/keyboard control | ||
| Linear scale resolution (um) | 0.1um | ||
HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
