| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
|---|---|
| ब्रांड नाम: | UNIMETRO |
| प्रमाणन: | CE,ISO |
| मॉडल संख्या: | एसवी सीरीज |
| न्यूनतम आदेश मात्रा: | 1 सेट |
| मूल्य: | विनिमय योग्य |
| पैकेजिंग विवरण: | लकड़ी का केस + वैक्यूम पैकेज |
| प्रसव के समय: | 15 ~ 20 दिन |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की क्षमता: | प्रति माह 5 सेट |
| नमूना: | एसवी सीरीज | प्रोडक्ट का नाम: | पूरी तरह से स्वचालित दृष्टि मापने की मशीन - SV3 |
|---|---|---|---|
| repeatability: | 2 उम | शुद्धता: | 2+एल/200um |
| रैखिक मान संकल्प: | 0.5um (वैकल्पिक के लिए 0.1um) | माप मोड: | पूरी तरह से स्वचालित |
| सहायता: | OEM,ODM, अनुकूलित करें | अनुप्रयोग दृश्यावली: | प्रयोगशाला/औद्योगिक |
| गारंटी: | 12 महीने | वजन(किग्रा): | 400 |
| क्रोध को मापना: | 300/300/200 | ||
| प्रमुखता देना: | fully automatic video measuring instrument,vision measurement machine with warranty,precision part fast testing machine |
||

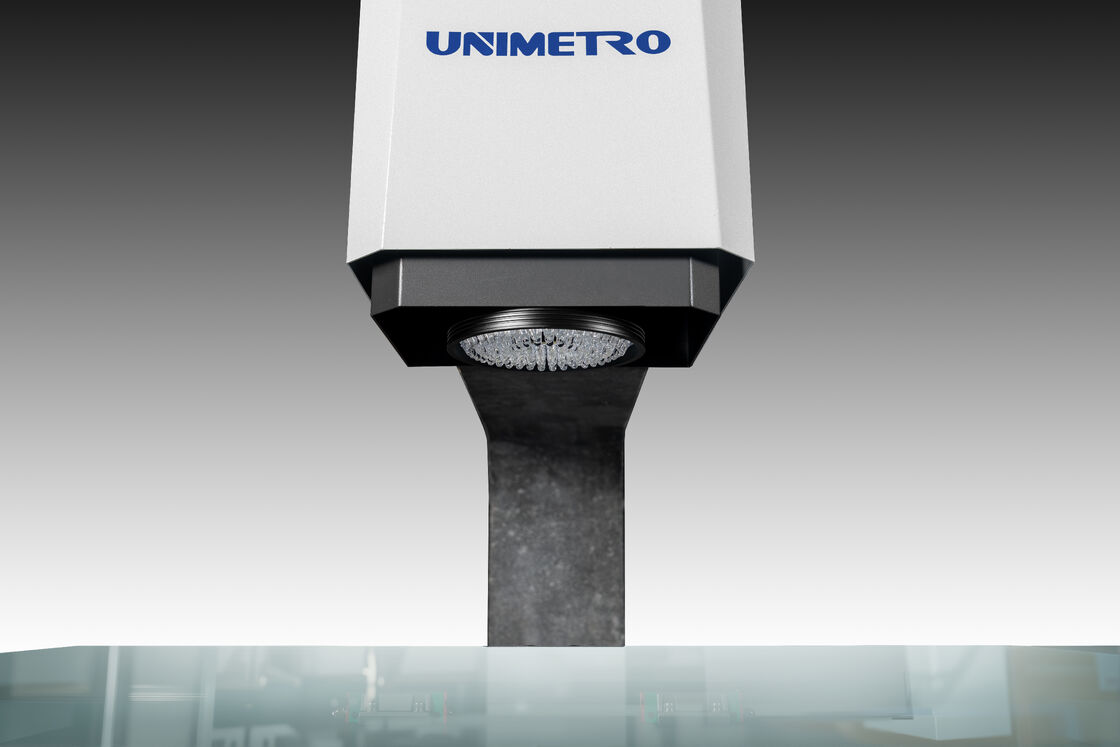

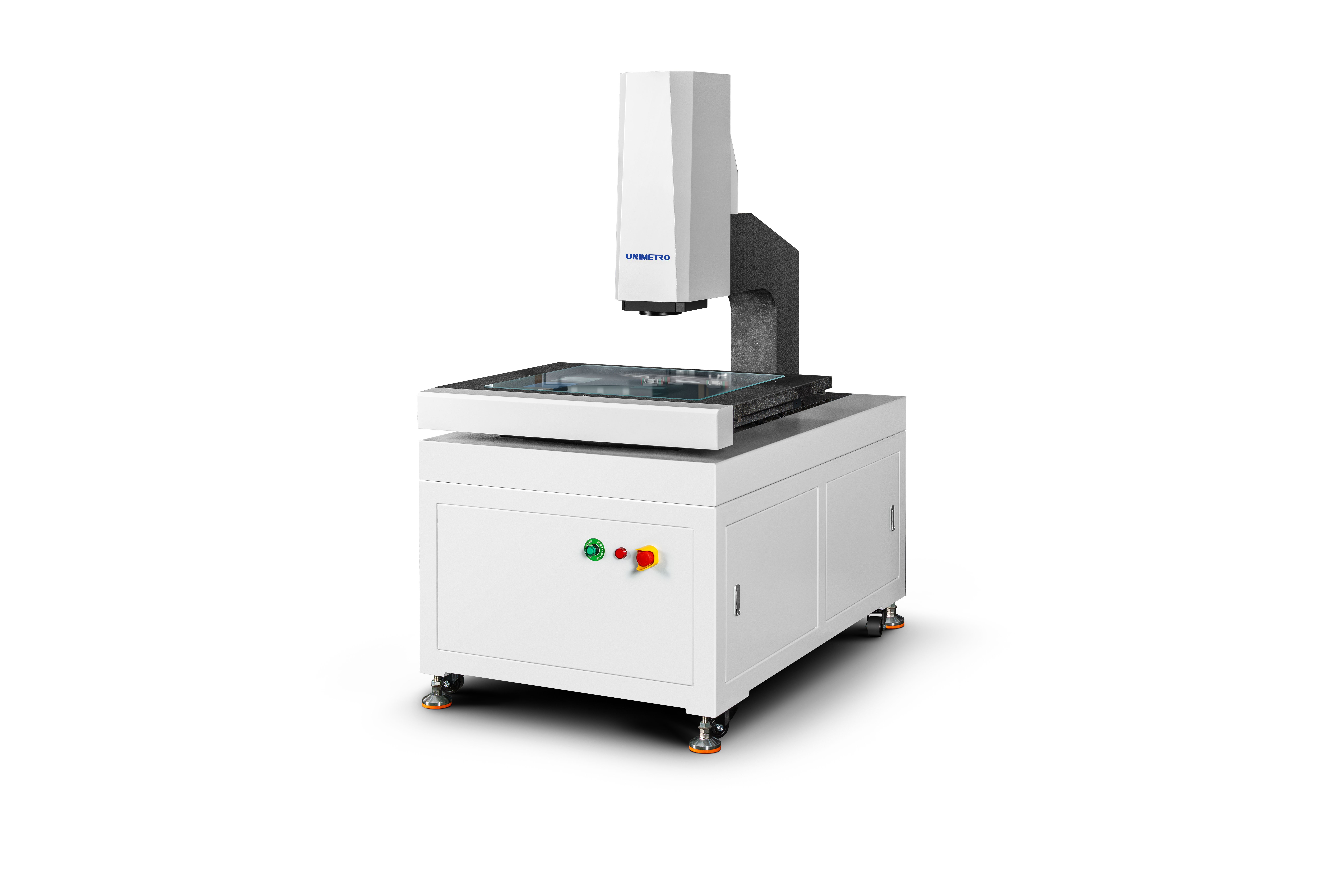

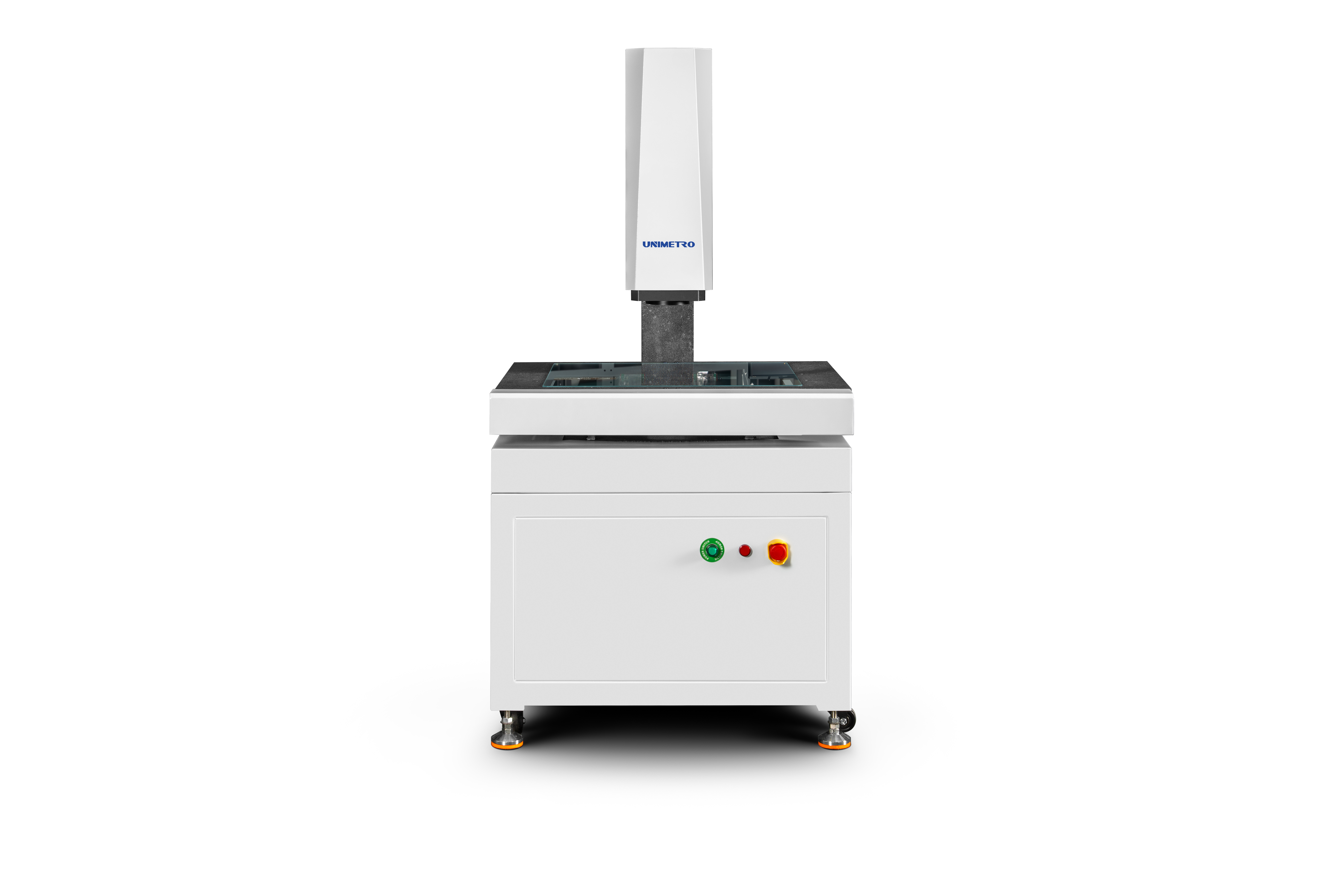

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring MARB (Multi-Axis Resolution Base) and SV (Super/Stable Video) technologies. This high-configuration system offers superior resolution and faster processing speeds for complex precision part testing.
Designed for three-axis fully automatic programmable detection, this instrument matches workpiece coordinate systems through programming to execute automated measurement processes. It includes memory, learning, and auto-programming functions for repeated measurements of heavy workpieces, enabling rapid and accurate real-time measurement on-site.
Constructed with high-stability marble base, this system provides exceptional durability with low maintenance costs, perfectly balancing high precision, efficiency, and long-term reliability for quality control in large-scale, complex manufacturing industries.
| Model | SV-3 | SV-4 | SV-5 | SV-6 |
|---|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 650/950/1740 | 730/1040/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300×200×200 | 400×300×200 | 500×400×300 | 600×500×200 |
| Accuracy (μm) | 2 +L/200 | 2 +L/200 | 2 +L/200 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (Varies by camera model)
Work Distance: 85 mm
Illumination: Programmable surface light, LED bottom parallel light (Optional: coaxial light)
Drive System: CNC control, linear motor drive; Joystick, mouse keyboard control
Linear Scale Resolution: 0.1μm
The HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and RENSHAW full series probe brackets for automatic transformation of full-scale measurement on a single device, significantly improving productivity.
